433MHz Antenna

The 12dBi Spring Magnetic Antenna is a high-gain antenna designed for applications that require a strong signal and extended range. Here’s a detailed look at its features and potential applications:

1. Frequency Range: This antenna is typically used at specific frequencies, such as 433 MHz, 868 MHz, or 915 MHz, depending on the design. Ensure it matches your system’s frequency requirements.

2. Gain: With a 12dBi gain, this antenna offers a significant increase in signal strength compared to lower-gain antennas. The higher gain can improve both the range and clarity of communication by focusing the signal more effectively.

3. Spring Design: The spring design provides flexibility and durability. It allows the antenna to bend and withstand physical stress without breaking, which is useful in dynamic environments or where the antenna might be subject to movement.

4. Magnetic Base: The magnetic base allows for easy and secure attachment to metal surfaces. This feature is ideal for temporary installations or where you want the flexibility to move the antenna without permanent mounting.

5. Directional Pattern: While the exact radiation pattern can vary, high-gain antennas like this often have a more directional pattern, focusing the signal in a specific direction. This can enhance performance over longer distances or in scenarios where you want to focus the signal on a particular area.

• Long-Range Wireless Communication: Useful in scenarios where extended range is crucial, such as in remote sensors, telemetry systems, or communication links over large areas.

• Industrial and Commercial Use: Suitable for applications requiring robust and high-performance antennas, like industrial monitoring systems or large-scale data collection networks.

• Amateur Radio: For hobbyists who need a high-gain antenna to enhance their communication range.

• IoT Devices: In Internet of Things (IoT) applications where devices are spread out over large distances and need reliable communication.

• Directionality: Due to its high gain, the antenna might have a more focused signal pattern, so ensure it is oriented correctly for optimal performance.

• Interference: Higher gain can also pick up more interference from other sources. Be mindful of your environment and potential sources of interference.

• Mounting: While the magnetic base is convenient, ensure it is placed on a stable, metal surface to avoid signal degradation due to poor attachment.

The 433MHz 3dBi Spring Magnetic Antenna is a more modestly powered antenna suitable for various wireless applications. Here’s an overview of its features and typical uses:

1. Frequency Range: Operates at 433 MHz, which is common for short-range wireless communication, such as remote controls and some IoT devices.

2. Gain: The 3dBi gain provides a basic level of signal enhancement compared to standard antennas. This moderate gain helps improve signal reception and transmission within a relatively short to moderate range.

3. Spring Design: The spring construction allows the antenna to be flexible and durable. It can bend and absorb some physical stress without breaking, which is beneficial in environments where the antenna might be subject to movement or vibration.

4. Magnetic Base: Equipped with a magnetic base for easy attachment to metal surfaces. This is useful for temporary setups or where permanent mounting is not practical. The magnetic base allows for simple repositioning.

5. Omnidirectional Pattern: Generally, this type of antenna has an omnidirectional radiation pattern, meaning it transmits and receives signals in all directions. This characteristic is useful when the orientation of the antenna might vary.

• Remote Controls: Ideal for devices such as garage door openers or key fobs, where a moderate range and reliable connection are needed.

• Wireless Sensors: Suitable for short to moderate-range sensor networks used in home automation or small-scale industrial applications.

• IoT Devices: Works well for Internet of Things (IoT) applications where devices are close to each other and don’t require long-range communication.

• Amateur Radio: Can be used by amateur radio operators for applications where high gain is not crucial but flexibility and ease of installation are beneficial.

• Telemetry Systems: Useful in scenarios where you need basic signal enhancement without the need for high gain.

The 433MHz 7dBi Spring Magnetic Antenna is a versatile antenna commonly used in various wireless communication applications. Here’s a detailed look at its features and uses:

1. Frequency Range: Designed to operate at 433 MHz, which is a frequency widely used for wireless communications, including remote controls, sensors, and certain amateur radio bands.

2. Gain: The 7dBi gain indicates that this antenna provides a moderate increase in signal strength compared to standard antennas. It enhances the effective range and signal clarity by amplifying the signal more than a typical 2-5dBi antenna.

3. Spring Design: The spring construction adds durability and flexibility. It allows the antenna to flex and withstand movement or vibrations without breaking, making it suitable for various environments.

4. Magnetic Base: The magnetic base allows the antenna to be easily mounted on metal surfaces. This is ideal for temporary installations or where drilling or permanent mounting is not feasible. It also facilitates quick repositioning.

5. Omnidirectional Pattern: Typically, antennas like this offer an omnidirectional radiation pattern, meaning they receive and transmit signals in all directions. This is useful for applications where the antenna can be oriented in any direction.

• Remote Controls: Improves the communication range and reliability of remote control devices, such as garage door openers or key fobs.

• Wireless Sensors: Enhances the signal quality and range for wireless sensor networks used in home automation, industrial monitoring, or environmental sensing.

• IoT Devices: Beneficial for Internet of Things (IoT) devices that need reliable communication over moderate distances.

• Amateur Radio: Suitable for amateur radio operators who need a practical and high-performance antenna for 433 MHz frequencies.

• Telemetry Systems: Useful in telemetry applications where reliable data transmission over a moderate distance is required.

• Orientation: Ensure proper orientation of the antenna for optimal performance, especially in omnidirectional configurations where placement can affect coverage.

• Interference: Be aware of potential sources of interference in your environment, which can impact the performance of the antenna.

• Mounting: While the magnetic base is convenient, make sure the surface is clean and metal for a good magnetic hold. Avoid non-metallic surfaces as they won’t provide a secure mount.

The 433MHz 8dBi Spring Magnetic Antenna is a type of antenna commonly used in various wireless communication applications, such as remote controls, sensors, and other devices operating in the 433 MHz frequency band. Here’s a brief overview of its features and applications:

1. Frequency Range: Designed for use at 433 MHz, which is a popular frequency for various communication systems, including amateur radio and IoT devices.

2. Gain: With an 8dBi gain, this antenna offers a higher level of signal amplification compared to standard antennas. This gain helps to improve the range and overall performance of the wireless system.

3. Spring Design: The spring design allows for flexibility and durability. It can be bent and adjusted without breaking, making it suitable for applications where movement or vibration might occur.

4. Magnetic Base: The magnetic base allows for easy attachment to metal surfaces. This is particularly useful for temporary setups or where mounting holes are not available.

5. Omnidirectional Pattern: Typically, antennas with this configuration offer an omnidirectional radiation pattern, meaning they can receive and transmit signals from all directions. This is beneficial for maintaining consistent communication regardless of the antenna’s orientation.

• Remote Controls: Used in various remote-controlled devices to improve communication range and reliability.
• IoT Devices: Common in IoT applications for better signal transmission and reception.
• Amateur Radio: Used by hobbyists and in amateur radio setups for improved signal performance.
• Wireless Sensors: Enhances the range and effectiveness of wireless sensor networks.

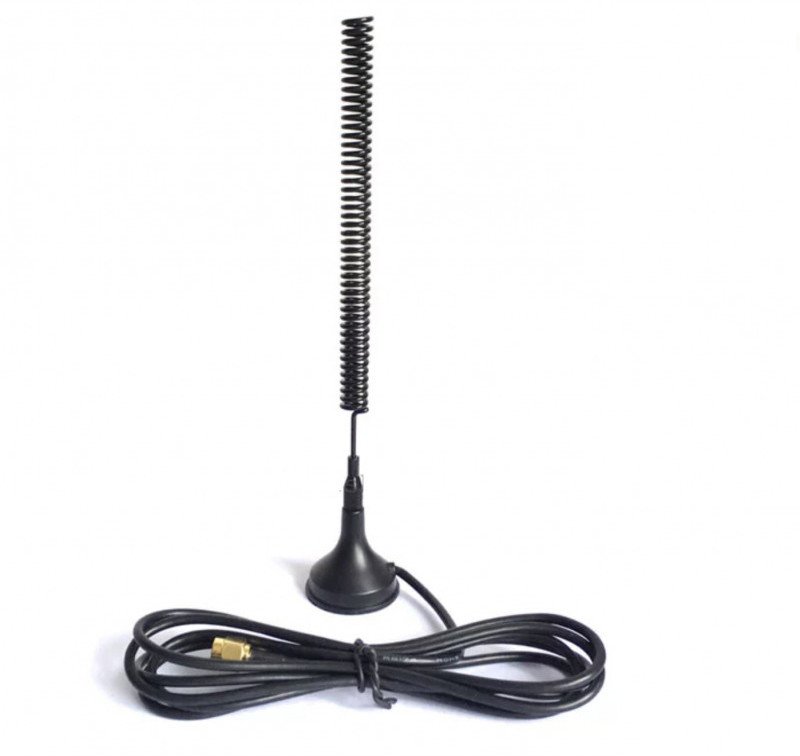

A 433MHz 9dBi spring magnetic antenna with an RG174 (L-3Mtr) cable and SMA male connector is designed for high-performance RF applications in the 433 MHz band. Here’s a detailed look at its components and features:

1. 433MHz Frequency:

   • This antenna is tuned for operation at 433 MHz, which is commonly used for various RF communications such as remote controls, certain types of IoT devices, and some wireless sensors.

2. 9dBi Gain:

   • Gain: The 9 dBi gain indicates a relatively high gain, meaning the antenna focuses the signal more effectively in a specific direction compared to an isotropic antenna. This provides better signal strength and extended range.
   • Directional Pattern: While the antenna is designed to provide a higher gain, it may have a more focused signal pattern, making it suitable for applications where increased range in a specific direction is required.

3. Spring Design:

   • Flexibility: The spring design allows the antenna to be flexible and resilient. This is useful for applications where the antenna might be subject to physical movement or where it needs to be adjusted to different angles.
   • Durability: The spring mechanism helps absorb physical shocks and prevents damage to the antenna.

4. Magnetic Base:

   • Mounting: The magnetic base allows for easy attachment to metal surfaces, providing a stable and secure mounting solution. This also makes it easy to reposition the antenna as needed.
   • Convenience: This feature is particularly useful in temporary or portable setups where flexibility in placement is important.

5. RG174 (L-3Mtr) Cable:

   • Cable Type: RG174 is a flexible, low-loss coaxial cable commonly used in RF applications. It is suitable for connecting antennas to devices over moderate distances.
   • Length: The "L-3Mtr" specifies that the cable is 3 meters long, providing flexibility in positioning the antenna away from the device.

6. SMA Male Connector:

   • Connector Type: The SMA male connector is a standard RF connector used in many applications. It provides a secure connection to the antenna port of your device.
   • Compatibility: Ensure that the SMA male connector matches the antenna port on your device for a proper fit and to prevent signal loss.

• Remote Controls: Suitable for applications requiring reliable communication over moderate distances, such as remote control systems.

• IoT Devices: Ideal for Internet of Things devices operating in the 433 MHz band that require enhanced signal range.

• Wireless Sensors: Useful for wireless sensor networks where improved range and signal strength are beneficial.

• Temporary or Portable Installations: The magnetic base and flexible spring design make it ideal for setups where the antenna needs to be moved or repositioned frequently.

• Placement: Ensure the magnetic base is attached to a clean, flat metal surface for optimal performance. The flexible spring design allows you to adjust the antenna's position to achieve the best signal reception.

• Cable Management: With a 3-meter RG174 cable, manage the cable to avoid physical stress on the connectors and ensure it does not create interference or signal loss.

• Connector Compatibility: Verify that the SMA male connector is compatible with your device's antenna port to ensure a secure connection.
