865MHz Antenna

• 865MHz: This indicates the frequency at which the antenna is designed to operate effectively. 865 MHz is commonly used in certain radio communication applications, including some types of RFID systems.

• Helium Frequency: This could refer to a specific frequency range associated with Helium networks, such as those used in Helium (LoRaWAN) networks for IoT applications. In Helium networks, 865 MHz is within the ISM (Industrial, Scientific, and Medical) band used in some regions.

• 5dBi: This is the gain of the antenna, measured in decibels relative to an isotropic radiator (dBi). A 5dBi gain means the antenna is relatively efficient at focusing energy in a specific direction, which can help improve signal strength and range.

• Rubber Duck Antenna: This is a type of antenna that is typically flexible and durable, often used for its ruggedness and ease of use. The "rubber duck" design is a popular choice for many portable and handheld devices.

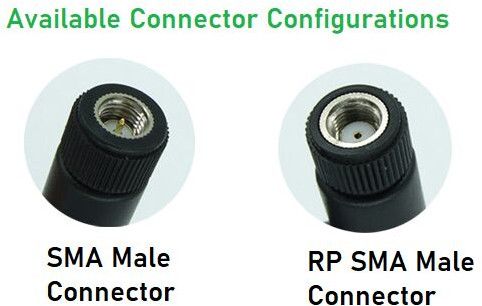

• SMA Male Movable Connector: This refers to the type of connector on the antenna. An SMA (SubMiniature version A) male connector is a common type used in RF applications. The "movable" aspect suggests that the connector might be adjustable or rotatable, allowing for better positioning and alignment.

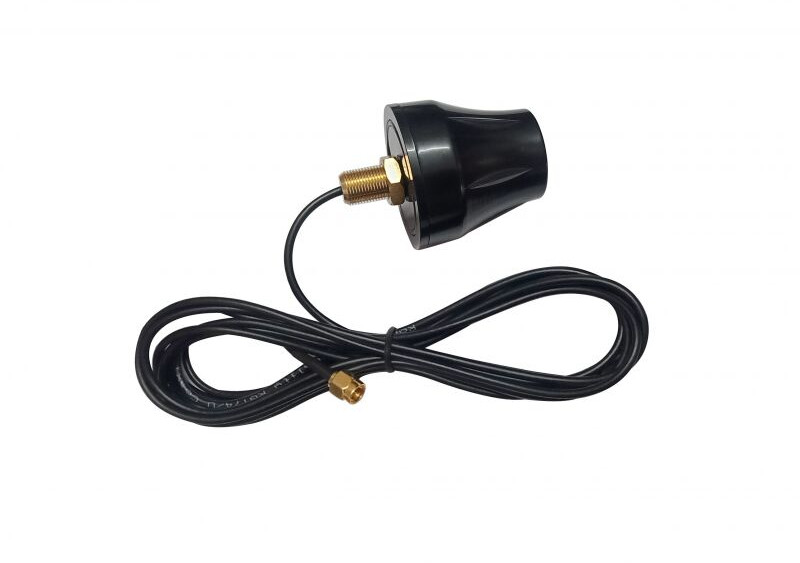

An 865 MHz screw mount antenna is designed for use in applications that operate within the 865 MHz frequency range, often associated with RFID (Radio-Frequency Identification) systems. Here’s a general overview of what you might need to know:

• Frequency Range: Specifically tuned for 865 MHz, which is commonly used in UHF RFID systems, particularly in regions like India and other parts of Asia.
• Mounting Type: Screw mount indicates the antenna is designed to be fixed in place using screws, making it suitable for permanent installations.
• Antenna Type: These can vary, but typical types include monopole, dipole, or patch antennas, each having different radiation patterns and characteristics.

• RFID Systems: For reading and writing RFID tags in environments such as warehouses, retail, and logistics.
• Telecommunication Equipment: Used in communication systems that operate within the 865 MHz band.
• Industrial Monitoring: Can be used in industrial settings for asset tracking and monitoring.

• Mounting: Ensure the antenna is mounted securely in a location with minimal obstruction to achieve optimal performance.
• Orientation: Depending on the antenna type, orientation can affect performance. Consult the manufacturer’s guidelines for best practices.
• Cable and Connector: Use the appropriate cable and connector that matches both the antenna and the equipment it connects to. High-quality cables can reduce signal loss.

• Gain and Coverage: Check the antenna’s gain specifications to ensure it meets your coverage requirements.
• Environmental Factors: Consider factors such as weather and interference, especially if the antenna is mounted outdoors.

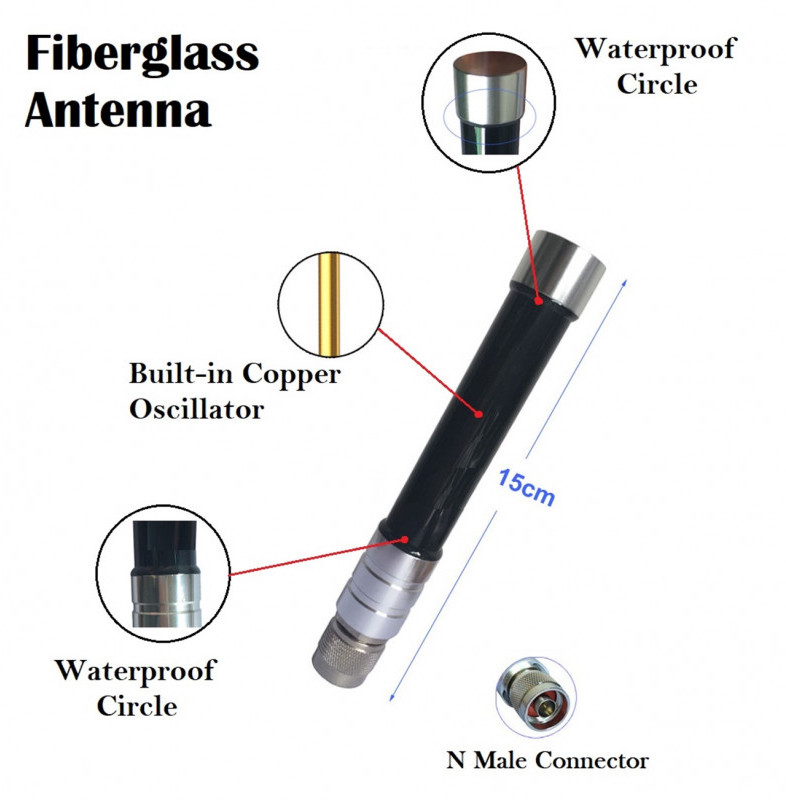

An 865 MHz 10dBi fiberglass antenna is a specialized antenna designed for wireless communication applications operating in the 865 MHz frequency range. Here’s a detailed overview of its features and typical uses:

1. Frequency:

   • 865 MHz: This frequency is part of the UHF (Ultra High Frequency) band and is commonly used in various applications, including RFID systems and some LoRaWAN (Low Power Wide Area Network) systems for IoT (Internet of Things) communications. It’s also used in the ISM (Industrial, Scientific, and Medical) band in certain regions.

2. Gain:

   • 10dBi: The gain of 10dBi indicates that the antenna provides a relatively high level of signal concentration in a specific direction compared to a standard isotropic radiator. This high gain helps in achieving longer range and better signal strength, making it suitable for applications where distance and signal quality are critical.

3. Material:

   • Fiberglass: The antenna’s radome (protective cover) or structure is made of fiberglass, which is known for its durability, weather resistance, and lightweight properties. Fiberglass antennas are well-suited for outdoor use and harsh environments.

1. LoRaWAN Networks:

   • IoT Connectivity: This antenna is well-suited for use in LoRaWAN networks, which operate in the 865 MHz band in some regions. It can be used with LoRaWAN gateways or nodes to enhance communication range and reliability for IoT applications like smart agriculture, environmental monitoring, and asset tracking.

2. UHF RFID Systems:

   • Asset and Inventory Management: While typically used in RFID systems operating around 865 MHz, the high gain of this antenna improves the range and accuracy of RFID tag reading in logistics, warehousing, and inventory management applications.

3. Long-Distance Wireless Communication:

   • Point-to-Point Links: The high gain makes this antenna suitable for long-distance wireless communication setups, such as point-to-point links where extended coverage is needed.

1. Mounting:

   • Mounting Options: Fiberglass antennas are often mounted on masts or poles. Ensure that the antenna is securely mounted to prevent any mechanical stress or movement that could affect its performance.

2. Alignment:

   • Directional: High-gain antennas like this one are typically directional, meaning they need to be properly aligned with the signal source or target to achieve optimal performance. Ensure precise alignment to maximize signal strength and coverage.

3. Environmental Protection:

   • Weather Resistance: While fiberglass is weather-resistant, ensure that the antenna is installed in a location where it won’t be subject to extreme conditions or physical damage. Proper installation can help prevent issues caused by environmental factors.

4. Signal Path:

   • Clear Line of Sight: For optimal performance, especially in long-distance applications, ensure there is a clear line of sight between the antenna and the signal source or receiver.

An 865 MHz 5 dBi PCB flexible antenna is a specialized type of antenna designed for applications that operate around the 865 MHz frequency range, often used in RFID systems and other wireless communication technologies. Here’s a breakdown of what this type of antenna entails:

• Frequency Range: Tuned specifically for the 865 MHz band, which is common in UHF RFID systems in certain regions (e.g., parts of Asia).
• Gain: 5 dBi (decibels isotropic) indicates a moderate level of gain. This means the antenna is designed to enhance the signal strength compared to a theoretical isotropic antenna, offering a good balance between range and coverage.
• PCB (Printed Circuit Board): The antenna is built on a PCB, making it a compact and durable option suitable for integration into various electronic devices.
• Flexible Design: The antenna is flexible, which allows it to be bent or shaped to fit into various enclosures or mounting configurations. This can be particularly useful in applications where space is constrained or where a rigid antenna would be impractical.

• RFID Systems: Ideal for use in UHF RFID readers and tags, especially in regions where 865 MHz is the standard frequency.
• Wireless Communication Devices: Can be used in other wireless devices operating within the same frequency range, such as certain IoT (Internet of Things) applications.
• Portable or Embedded Devices: The flexibility of the antenna allows it to be used in portable devices or embedded into products where a rigid antenna might not fit.

• Mounting: Since it’s a flexible PCB antenna, it can be mounted in a variety of orientations and positions. Ensure it is positioned where it can receive and transmit signals effectively, considering any obstructions or interference.
• Orientation: The performance of the antenna can be affected by its orientation. Follow any specific guidelines provided by the manufacturer for optimal placement.
• Connections: Ensure that the antenna is connected properly to the RF circuitry of your device. The connection should be secure to avoid signal loss or degradation.

• Environment: While flexible, ensure the antenna is protected from extreme environmental conditions that could affect its performance or longevity.
• Integration: When integrating the antenna into a device, consider the overall design and how the antenna’s placement will impact signal quality and coverage.
