915MHz Antenna

A 915MHz 10dBi outdoor fiberglass antenna with an N Male straight connector is a high-performance antenna designed for outdoor use at the 915 MHz frequency. Here’s a detailed breakdown of its components and features:

1. 915MHz Frequency:

   • The antenna is tuned to operate efficiently at 915 MHz, which is commonly used for RF applications like RFID systems, certain IoT devices, and wireless communication systems.

2. 10dBi Gain:

   • Gain: The 10 dBi gain indicates that the antenna can focus the signal more effectively in a specific direction compared to an isotropic antenna. A higher dBi value means better performance in terms of signal strength and range, but it also means the antenna has a more directional pattern.
   • Directional Pattern: While the antenna provides higher gain, it often results in a more focused signal beam, which is ideal for long-range communication in specific directions.

3. Outdoor Fiberglass Construction:

   • Durability: The fiberglass construction ensures that the antenna is robust and capable of withstanding harsh weather conditions, making it suitable for outdoor environments.
   • Weather Resistance: Fiberglass is known for its resistance to moisture, UV radiation, and extreme temperatures, ensuring long-term reliability and minimal maintenance.

4. N Male Straight Connector:

   • Connector Type: The N male connector is a standard RF connector used for various types of antennas and RF equipment. It provides a secure connection to the coaxial cable.
   • Straight Configuration: The straight configuration of the connector allows for a direct connection to compatible equipment or cables without additional adapters.

• Long-Range Wireless Communication: Suitable for applications requiring extended range and signal strength, such as point-to-point communication systems.

• Outdoor RFID Systems: Ideal for RFID applications where the antenna needs to be installed outdoors and needs to perform reliably over long distances.

• IoT and Wireless Networks: Useful in outdoor IoT deployments and wireless networks where high gain and durability are required.

• Mounting: Ensure that the antenna is mounted securely in a location that provides a clear line of sight for optimal performance. It may require a suitable mounting bracket or pole for installation.

• Alignment: Given the high gain, proper alignment of the antenna is crucial to ensure it points in the correct direction for optimal signal coverage.

• Cable Compatibility: Make sure that the coaxial cable and any connectors used are compatible with the N male connector on the antenna to ensure a good signal connection.

The description you've provided details a high-performance antenna. Here’s a breakdown of its components:

1. 915MHz: This is the frequency at which the antenna operates. The 915 MHz frequency is part of the ISM band and is commonly used in RF applications such as RFID systems, IoT devices, and various wireless communication systems.

2. 18dBi: This indicates the gain of the antenna. An 18dBi gain is quite high, meaning the antenna is very efficient at focusing the signal in a particular direction, resulting in a significant increase in signal strength and range compared to antennas with lower gain. High-gain antennas are typically used for long-distance communication and can greatly improve performance in line-of-sight applications.

3. Fiberglass Antenna: This describes the material used for the antenna's construction. Fiberglass antennas are known for their durability and resistance to environmental factors such as moisture and UV radiation. They are often used in outdoor applications due to their robustness and ability to withstand harsh conditions.

4. N Male Connector: This is a type of RF connector used for connecting the antenna to other equipment. The N male connector is commonly used in higher-frequency and high-power applications. It is known for its robustness and reliability in maintaining a stable connection. The "male" designation indicates the connector has a protruding pin that fits into a corresponding "female" connector.

• 915MHz: Designed for operation in the 915 MHz frequency band.
• 18dBi Gain: Provides very high directivity and signal strength, suitable for long-range communication.
• Fiberglass Construction: Offers durability and weather resistance, making it suitable for outdoor use.
• N Male Connector: Ensures a robust and reliable connection for high-frequency applications.

This high-gain fiberglass antenna is ideal for applications requiring long-range communication and high durability, such as:

• Long-Distance RFID Systems: Ideal for applications needing extensive coverage.
• IoT Devices: Useful in scenarios where devices are spread out over a large area.
• Wireless Communication Systems: Enhances performance in environments where a strong, directional signal is required.

The antenna’s high gain and rugged construction make it well-suited for outdoor or industrial environments where reliable, long-range communication is essential.

A 915MHz 2.5dBi rubber duck antenna with an SMA (M) R/A (right angle) connector is a compact and versatile antenna suitable for various RF applications. Here’s a breakdown of its features and uses:

Key Features:

1. 915MHz Frequency:

   • The antenna is designed to operate at 915 MHz, which is commonly used in RF communication applications such as RFID, some IoT devices, and certain wireless systems.

2. 2.5dBi Gain:

   • Gain: The 2.5 dBi gain indicates a relatively low gain compared to higher gain antennas. This means the antenna provides a more omnidirectional radiation pattern, offering good coverage in all directions but with less focused signal strength.
   • Omnidirectional Pattern: Ideal for situations where you need a broad coverage area rather than focusing the signal in a specific direction.

3. Rubber Duck Design:

   • Material: Made from flexible and durable rubber or elastomer material, this design is resilient and can withstand some degree of physical stress.
   • Flexibility: The rubber duck design is often used in portable or mobile applications where flexibility and durability are important.

4. SMA (M) R/A Connector:

   • Connector Type: SMA (SubMiniature version A) is a commonly used RF connector type. The (M) denotes that it is a male connector, which has a center pin.
   • Right Angle (R/A): The right-angle configuration allows the antenna to be mounted in a way that doesn't require a lot of vertical space, making it suitable for tight or constrained spaces. It helps to reduce strain on the connector and cable.

Applications:

• Portable Devices: Ideal for portable or handheld devices where a durable, flexible antenna is needed.

• IoT Devices: Common in Internet of Things devices that operate in the 915 MHz band and require a compact, reliable antenna.

• RFID Systems: Used in RFID applications where space is limited, and a low-profile, flexible antenna is advantageous.

• Wireless Communication: Suitable for general wireless communication systems where omnidirectional coverage is needed.

Installation Considerations:

• Mounting: The right-angle SMA connector allows for flexible mounting options. Ensure the antenna is positioned in a way that provides optimal signal coverage for your application.

• Space Constraints: The compact size and flexible nature make it a good choice for devices with limited space or where the antenna needs to be oriented at a particular angle.

• Cable Management: If using with a coaxial cable, ensure that the cable and connector are compatible and securely connected to prevent signal loss or interference.

A 915MHz 3dBi rubber magnetic antenna is a type of antenna designed for use with devices that operate at a frequency of 915 MHz, which is common in various RF applications such as RFID systems, some IoT devices, and certain types of wireless communication. Here’s a brief rundown of what each term means:

1. 915MHz: This refers to the frequency at which the antenna is optimized to operate. It’s in the UHF (Ultra High Frequency) range and is used in many RF applications.

2. 3dBi: This stands for 3 decibels over an isotropic radiator. It’s a measure of the antenna’s gain. A 3dBi gain means the antenna radiates the signal more effectively in a certain direction compared to an isotropic antenna (a theoretical antenna that radiates equally in all directions).

3. Rubber: The material of the antenna's exterior is rubber, which is flexible and durable. This makes the antenna more robust and suitable for various environments, especially where it might be exposed to physical stress or harsh conditions.

4. Magnetic: The antenna includes a magnetic base, allowing it to be easily attached to metal surfaces. This provides convenience for mounting and repositioning the antenna without the need for permanent installation.

In practice, this type of antenna is often used in applications where you need a flexible, portable antenna that can be easily attached to metal surfaces, such as on the outside of equipment or vehicles. It’s particularly useful in environments where antennas might need to be moved frequently or where a more permanent mount isn't ideal.

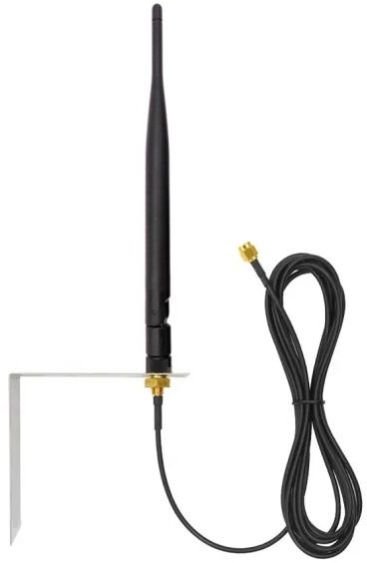

The description you've provided refers to a specific type of antenna setup. Here's a detailed breakdown of each component:

1. 915MHz: This is the frequency at which the antenna operates. 915 MHz is commonly used in the ISM (Industrial, Scientific, and Medical) band for various applications, including RFID, IoT devices, and other wireless communication systems.

2. 5dBi: This indicates the gain of the antenna. A 5dBi gain means the antenna is designed to provide a moderate level of signal amplification and directivity. This gain is useful for general-purpose applications where a balance between coverage area and signal strength is desired.

3. Rubber Duck Antenna: This type of antenna is known for its flexibility and durability. The "rubber duck" design is typically compact and resilient, making it suitable for portable or mobile applications. Its flexible nature allows it to withstand physical stress and environmental conditions better than more rigid antenna types.

4. RG174 Cable: RG174 is a type of coaxial cable known for its thin, flexible design. It is commonly used for connecting antennas to other RF equipment, especially in applications where space is limited or flexibility is required. RG174 is suitable for short to medium-length connections and provides adequate performance for many RF applications.

• 915MHz: Frequency of operation, suitable for various RF applications.
• 5dBi Gain: Provides moderate signal strength and coverage, offering a balance between range and directivity.
• Rubber Duck Design: Durable and flexible, ideal for portable and mobile use.
• RG174 Cable: Thin and flexible coaxial cable for connecting the antenna, making it suitable for compact setups.

This antenna setup is versatile and suitable for a range of applications where a balance of performance and durability is needed. Typical uses include:

• RFID Systems: Provides moderate gain for RFID tags and readers operating at 915 MHz.
• IoT Devices: Useful in devices that require flexible and durable internal or external antennas.
• Wireless Communication: Suitable for applications needing reliable, moderate-range connectivity with a durable antenna design.

The combination of a 5dBi gain rubber duck antenna with RG174 cable makes this setup well-suited for environments where flexibility, durability, and moderate performance are required.

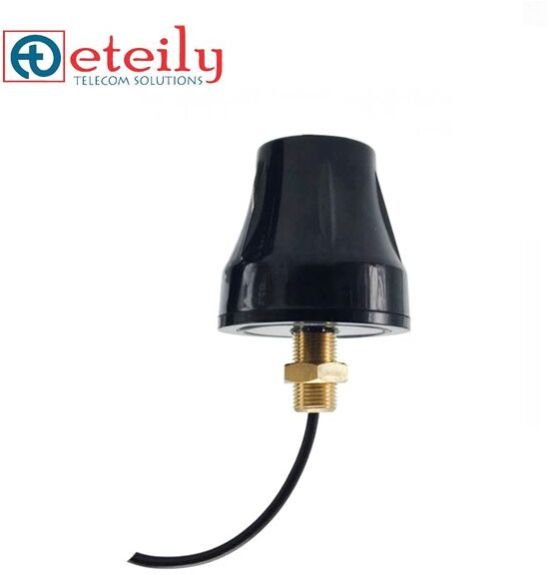

A 915MHz screw mount antenna is designed for applications that operate at 915 MHz, a frequency commonly used in RF communications like RFID, IoT devices, and certain types of wireless systems. Here's a breakdown of the key features and what they mean:

1. 915MHz: This is the operating frequency of the antenna, suitable for devices that communicate at this specific UHF (Ultra High Frequency) range.

2. Screw Mount: This indicates that the antenna is designed to be secured with a screw or mounting hardware. It usually involves a threaded base or a mount that allows it to be attached to a panel or enclosure. This type of mount is beneficial for more permanent installations where a stable and secure connection is desired.

• Stable Mounting: The screw mount design ensures that the antenna is securely attached, reducing the risk of it becoming dislodged or shifting, which can impact performance.

• Durability: Often, screw mount antennas are built with more robust materials and are intended for more permanent installations compared to other types of mounts. This makes them suitable for industrial or outdoor environments.

• Customization: Screw mount antennas can often be customized or replaced without needing to replace the entire device. The threaded mount allows for different antennas to be used as needed for specific applications.

• Reduced Interference: A fixed, securely mounted antenna can provide better performance and reduced signal interference compared to more flexible or temporary mounting solutions.

• Industrial Equipment: Used in various industrial settings where reliable and stable RF communication is needed.

• RFID Systems: Common in RFID applications where a robust, permanent antenna setup is necessary.

• IoT Devices: Useful in Internet of Things devices that require consistent connectivity.

• Communications Systems: Suitable for systems where the antenna needs to be securely attached to ensure optimal signal reception and transmission.

When selecting a 915MHz screw mount antenna, ensure that it matches the connector type and mounting requirements of your device. This will help you achieve the best performance and reliability for your RF application.
