Twitter| Business Type | Manufacturer, Exporter, Supplier, Trader, Distributor |
| Connection Type | Female |
| Condition | New |
| Color | Golden |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Material
Brass
Brand Name
ETEILY
Type
Sma Connector
Gender
Female
Product
Connector
Frequency
DC~6GHz
Mounting
PCB Mount
Dimension
W:14.6mm X H:13mm
Orientation
Right Angled
Material & Plating
Brass, Gold
Product Code
ET-SFRA-PCT2
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Delivery Time
5 Days

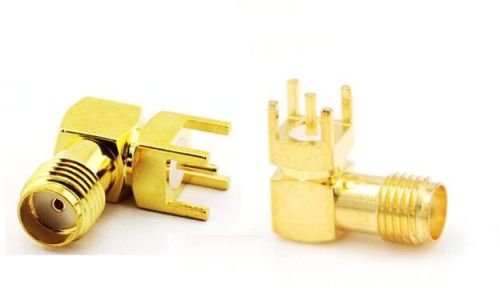

- SMA: A common type of coaxial connector used in radio frequency (RF) applications.
- Female: Refers to the connector's gender, meaning it accepts a male SMA connector.
- R/A: Short for Right Angle, indicating the connector's orientation.
- PCB Mount: Means the connector is designed to be soldered onto a printed circuit board (PCB).
-
Key Features and Applications:
- Right Angle Design: This configuration is often used to save space on a PCB or when the connector needs to be oriented perpendicular to the board.
- PCB Mounting: Allows for direct integration into the PCB design, providing a secure and reliable connection.
- RF Applications: Commonly used in various RF systems, including antennas, wireless communication devices, test equipment, and more.
- Frequency Range: Typically operates in the DC to 18 GHz frequency range.
- Impedance: Standard impedance is 50 ohms.
Typical Specifications:
- Impedance: 50 ohms
- Frequency range: DC to 18 GHz
- VSWR: 1.15 or lower
- Insulation resistance: 5000 M ohms
- Center contact resistance: 6 m ohms max
- Outer contact resistance: 2 m ohms max
Looking for "SMA Female R/A PCB Mount Connector" ?
