Twitter| Business Type | Manufacturer, Exporter, Supplier, Trader, Distributor |
| Brand Name | ETEILY |
| Material | Brass |
| Color | Golden |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Condition
New
Connection Type
Female
Application
Electrical Adaptor
Certification
CE Certified, ISI Certified
Gender
Female
Feature
Easy To Connect, Electrical Porcelain, Four Times Stronger, Proper Working, Shocked Proof, Superior Finish, Water Proof
Type
Connector
Warranty
1year
Country of Origin
India
Series
SMA
Frequency
6GHz
Mount Method
Panel Mount
Body Style
Straight
Polarity
Standard
Plating
Gold Plated
Product Code
ET-SFS-2H-T5M
Payment Terms
L/C, D/A, D/P, Western Union, Other
Delivery Time
5 Days

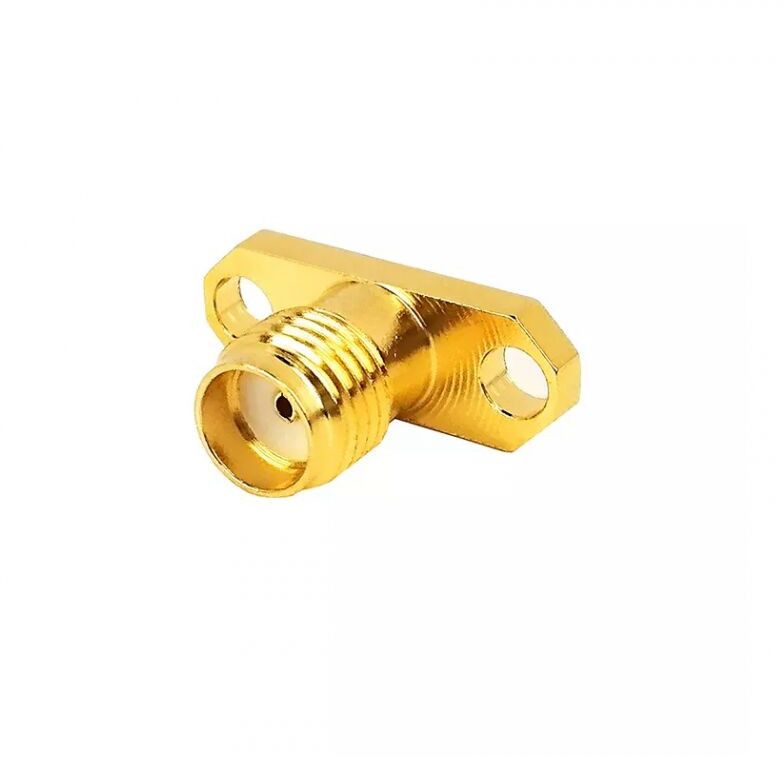

An SMA Female Straight 2-Hole Panel Mount Connector with 5mm Teflon is a specialized RF connector designed for mounting on panels or enclosures. Here’s a detailed overview of this connector:
Key Features and Specifications-
Connector Type:
- SMA (SubMiniature version A): A standard RF connector known for its durability and ability to handle high frequencies.
-
Gender:
- Female: The connector features internal threads and accepts a male SMA connector.
-
Mounting Type:
- Panel Mount: Designed to be attached to a panel or enclosure.
- 2-Hole: It has two mounting holes for securing it in place, which is less common than the 4-hole variant but useful for specific designs or space constraints.
-
Insulator Material:
- 5mm Teflon: Teflon (PTFE) is used as the dielectric material. The “5mm” refers to the thickness of the Teflon insulator, which ensures low signal loss and high-frequency performance.
-
Mechanical and Electrical Specifications:
- Impedance: Typically 50 ohms, suitable for most RF applications.
- Frequency Range: SMA connectors generally support frequencies up to 18 GHz or higher.
- Connector Style: Straight, meaning the connector does not have any angular bends, which makes it ideal for straightforward, direct connections.
-
Connector Body and Finish:
- Material: Usually made from brass or stainless steel for strength and durability.
- Finish: Commonly gold-plated contacts to enhance conductivity and resistance to corrosion.
-
Determine Your Requirements:
- Panel Specifications: Confirm the panel or enclosure dimensions and ensure it has the appropriate cutout and hole spacing for the 2-hole mounting style.
- Performance Needs: Verify that the connector meets your requirements in terms of impedance, frequency range, and electrical performance.
-
Find a Supplier:
- Manufacturers and Distributors: Look for suppliers specializing in RF connectors. Major manufacturers include Amphenol, Radiall, and TE Connectivity. Distributors like Digi-Key, Mouser, or RS Components also carry these connectors.
-
Order Details:
- Specify the Connector: Clearly state that you need an SMA Female Straight 2-Hole Panel Mount Connector with 5mm Teflon.
- Quantity: Indicate the number of connectors required to get a pricing quote.
