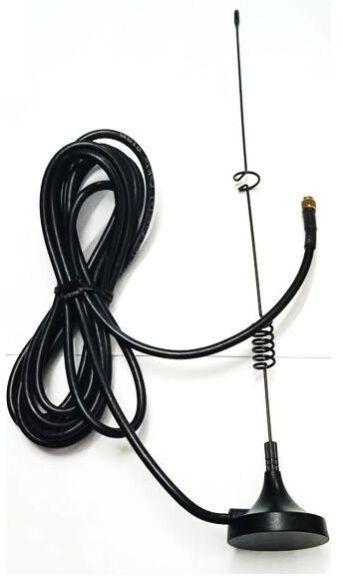

3G 9dBi Magnetic Antenna with RG174 Cable (L-3MTR) + SMA (M) St. Connector

The 3G 9dBi Magnetic Antenna with RG174 Cable (L-3MTR) and SMA Male Straight Connector is a specific setup designed to improve 3G signal reception. Here’s a detailed overview of its components and their uses:

1. 3G 9dBi Magnetic Antenna:

   • 3G: This antenna is tailored for use with 3G mobile networks, enhancing signal reception and transmission within that frequency range.
   • 9dBi Gain: The antenna provides a gain of 9dBi, which indicates a high level of signal boost compared to antennas with lower gain. This gain is useful for extending the range and improving signal strength in areas with weak reception.
   • Magnetic Mount: The antenna features a magnetic base, allowing it to be easily attached to any metal surface. This provides flexibility in mounting and makes it suitable for temporary or mobile installations.

2. RG174 Cable (L-3MTR):

   • RG174: A type of coaxial cable that is thinner and more flexible than RG58, making it ideal for short cable runs and flexible installations.
   • L-3MTR: Indicates the cable is 3 meters (approximately 9.8 feet) long, offering some flexibility in positioning the antenna relative to your device.

3. SMA Male Straight Connector:

   • SMA Male: This connector type is used to connect the antenna to the device. The SMA male connector fits into an SMA female port on your equipment.
   • Straight Connector: A standard, straight connector that provides a direct connection without any angle, simplifying installation.

• 9dBi Gain: Provides a substantial boost in signal strength, improving reception and transmission in areas with weak signal coverage. This higher gain allows the antenna to capture signals from a greater distance.
• Magnetic Mount: Facilitates easy installation on metal surfaces, making it suitable for temporary setups or locations where drilling or permanent mounting is not possible. It also allows for easy repositioning of the antenna.
• Flexible Cable: The RG174 cable is flexible and easy to route, which is useful for managing installation in tight spaces or when connecting to devices that are not in a fixed location.

• Mounting: Attach the magnetic base to a clean, flat metal surface to ensure a strong hold. The surface should be free of debris to maintain good magnetic contact.
• Positioning: Place the antenna where it has the best line of sight to the signal source, such as a cell tower. The magnetic base allows for easy adjustments in position to optimize signal reception.
• Cable Management: Route the RG174 cable carefully to avoid sharp bends or kinks, which can cause signal loss or damage. Secure the cable to prevent it from moving or getting snagged.
• Connector: Ensure the SMA male connector is firmly attached to the SMA female port on your device. A secure connection is crucial for maintaining signal integrity.

This antenna setup is ideal for improving 3G signal strength, particularly in environments where signal is weak or inconsistent. Its combination of high gain, flexible mounting options, and durable construction makes it a versatile choice for enhancing mobile network performance.
