RF Coaxial Cable Assembly

BNC (F) B/H Connector With RG178 Cable (L-20CM) + UFL Connector:

This setup consists of:

• BNC (F) B/H Connector: A female BNC connector with a bulkhead (panel mount) configuration. BNC connectors are commonly used in video and RF applications due to their quick connect/disconnect capability.

• RG178 Cable (L-20CM): A 20 cm (centimeter) length of RG178 coaxial cable. RG178 is a thin, flexible coaxial cable suitable for high-frequency applications.

• UFL Connector: A U.FL (IPEX) connector, also known as a micro-coaxial connector. U.FL connectors are very small and are often used in applications where space-saving and flexibility are critical, such as in small form-factor devices and embedded systems.

This assembly allows for a reliable RF connection over a short distance of 20 cm, with the BNC connector providing a secure bulkhead mount and the UFL connector offering a compact solution for connections requiring minimal space.

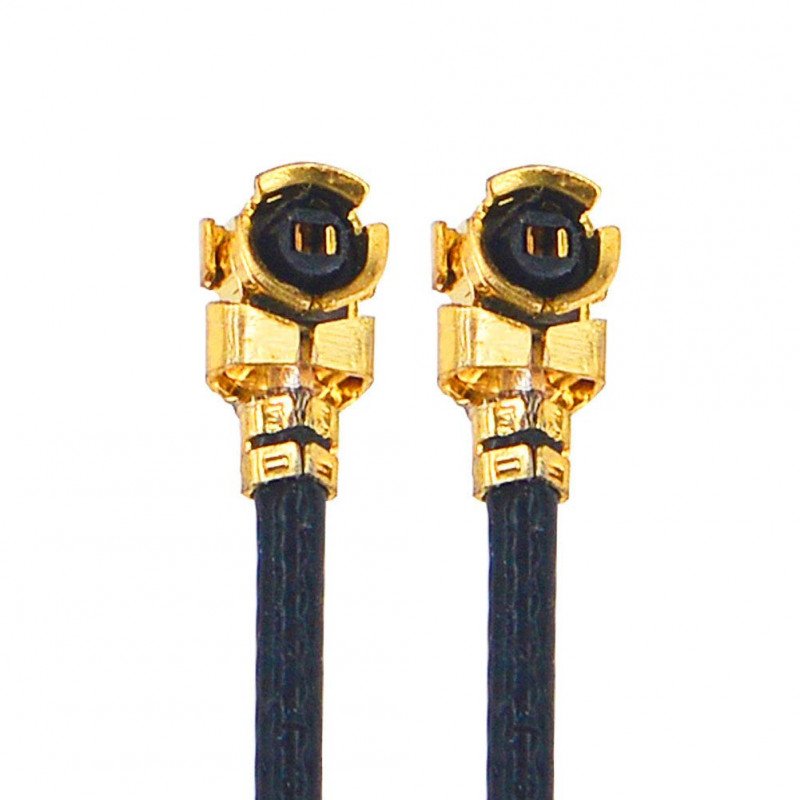

If you’re looking to order or customize a UFL to UFL (also known as UMCC) IPEX 1.13mm RF jumper cable, here are some key aspects and options you might want to consider:

1. Connector Type:

   • UFL/UMCC (Ultra Miniature Flexible): A very small coaxial connector used in RF applications.
   • IPEX (also known as IPEX 1.13mm): Another small coaxial connector that’s often used in similar applications.

2. Cable Type:

   • 1.13mm Cable: This refers to the diameter of the coaxial cable, which is 1.13mm. It’s designed for small, compact connections and offers low-loss performance at high frequencies.

3. Cable Length:

   • Custom lengths can be ordered based on your specific requirements. Typical lengths range from a few centimeters to over a meter.

4. Impedance:

   • Usually 50 ohms for RF applications.

5. Cable Construction:

   • Shielding: Look for cables with good shielding to prevent signal loss and interference.
   • Dielectric Material: The material used affects performance, so ensure it’s suitable for your application.

6. Frequency Range:

   • Ensure the cable and connectors are suitable for the frequency range of your application.

• Cable Length: Specify the exact length you need.
• Connector Type: Confirm the exact UFL and IPEX connector specifications (e.g., straight or right-angle).
• Shielding and Insulation: Choose based on environmental and performance requirements.
• Quantity: Custom orders can be made for small or large quantities.

1. Find a Supplier: Look for RF cable assembly manufacturers or suppliers who offer customization services. Examples include companies like Amphenol, Molex, or other specialized RF component suppliers.

2. Request a Quote: Provide detailed specifications (length, type of connectors, quantity) to get an accurate quote.

3. Lead Time: Custom assemblies may have varying lead times based on complexity and quantity.

4. Testing: Ensure the supplier tests the cables for performance and reliability, especially if you’re using them in critical applications.

If you have any specific requirements or need help with the ordering process, feel free to ask!

SMA (M) Connector Y-Type Splitter Combiner With Pigtail RG316 Cable:

This is a component used in RF applications, consisting of:

• SMA (M) Connector: A male SMA connector, commonly used in RF and microwave applications for transmitting and receiving signals.
• Y-Type Splitter Combiner: This device allows you to split an RF signal into two outputs or combine two RF signals into one input.
• Pigtail RG316 Cable: A type of coaxial cable (RG316) with one end terminated with an SMA connector. The "pigtail" refers to a short length of cable used to connect between components or to provide flexibility in installation.

This setup is useful in various RF systems where signal distribution or combining is necessary, such as in antenna arrays, test setups, or communication systems requiring signal splitting or combining capabilities.

The term "N (F) BH St. To MMCX (M) St. With RG178 (L-10CM) Cable Assembly" specifies a type of RF (Radio Frequency) cable assembly. Let's break down what each part of the specification typically means:

1. N (F) BH St.:

   • N (F): N-type female connector. This connector type is commonly used in RF applications and has a threaded coupling mechanism.
   • BH St.: This part is less standard and might refer to a specific variant or design feature of the N-type connector, possibly related to the cable attachment method or shielding. It could imply bulkhead mounting or a specific configuration.

2. To MMCX (M) St.:

   • MMCX (M): MMCX refers to a smaller RF connector type, often used in situations where space is limited or frequent connection/disconnection is required (like in RF test equipment or some consumer electronics).
   • St.: This likely stands for straight, indicating the style of the connector (straight rather than right-angle).

3. With RG178 (L-10CM):

   • RG178: This is a type of coaxial cable that is commonly used in RF applications. It has specific electrical and mechanical characteristics suitable for transmitting radio frequencies.
   • L-10CM: This specifies the length of the cable assembly. In this case, it's 10 cm long.

Interpretation: The entire phrase describes a cable assembly where:

• One end has an N-type female connector (possibly bulkhead style).
• The other end has an MMCX male connector (straight style).
• The cable used is RG178, and the total length of the cable assembly is 10 cm.

This type of cable assembly is typically used in RF and microwave applications where flexibility, reliability, and signal integrity are crucial, such as in wireless communication systems, test equipment, or antennas.

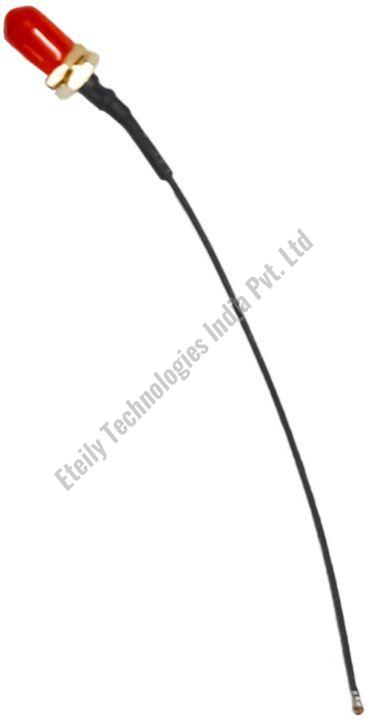

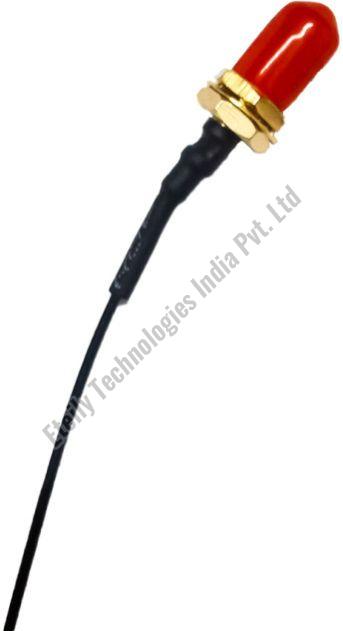

SMA (F) B/H With 0.81mm Cable (L -15cm ) + MHF4 Connector: This is a coaxial cable assembly featuring:

• SMA (F) B/H: A female SMA connector designed for RF applications.
• 0.81mm Cable (L -15cm ): A coaxial cable with a diameter of 0.81mm and a length of 15cm.

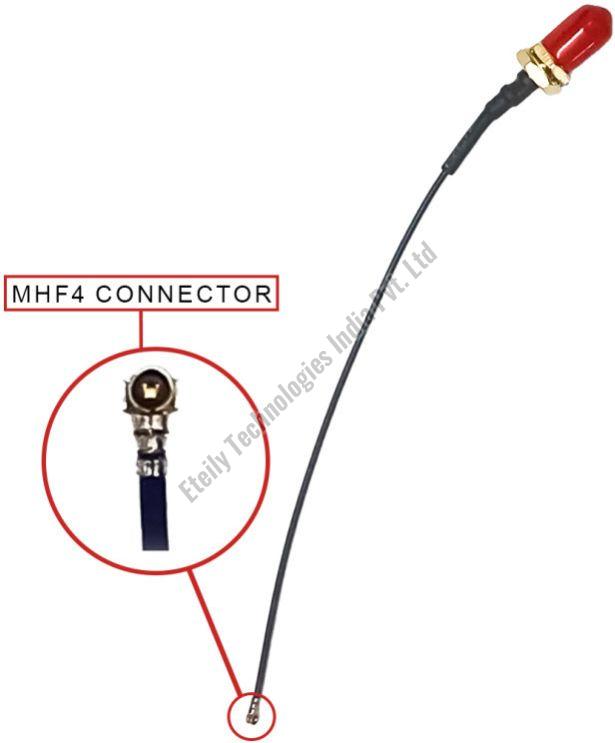

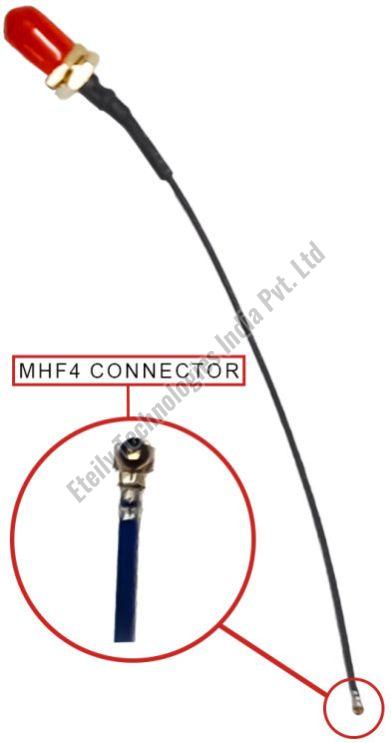

• MHF4 Connector: A miniature coaxial connector used at the other end of the cable.

This assembly is typically used in RF systems where a compact yet reliable connection is required, such as in wireless communications and antenna setups.

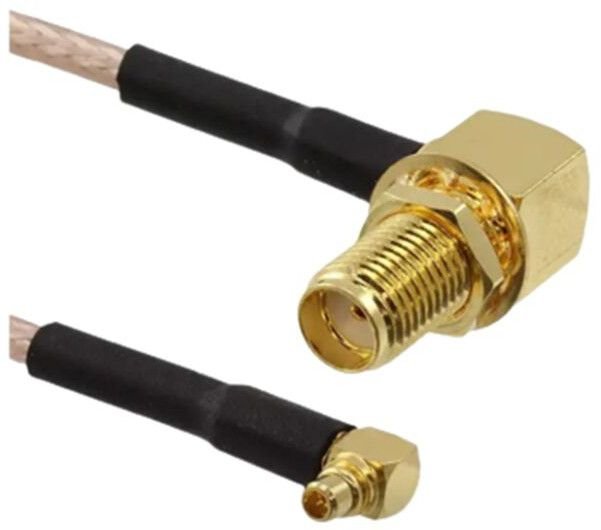

The specification "SMA (F) BH R/A To MMCX (M) R/A With RG316 (L - 3Mtr) Cable" describes yet another type of RF cable assembly. Here’s the breakdown of what each part typically signifies:

1. SMA (F) BH R/A:

   • SMA (F): SMA female connector. SMA connectors are widely used in RF applications for their robustness and performance.
   • BH: Bulkhead mount, indicating that this SMA female connector is designed to be mounted through a panel or enclosure.
   • R/A: Right-angle configuration, suggesting the connector is bent at a right angle rather than straight.

2. To MMCX (M) R/A:

   • MMCX (M): MMCX male connector. MMCX connectors are smaller and used where space is limited and frequent connection/disconnection is required.
   • R/A: Right-angle configuration, indicating the connector is bent at a right angle.

3. With RG316 (L - 3Mtr) Cable:

   • RG316: A type of coaxial cable known for its flexibility and good performance at higher frequencies.
   • L - 3Mtr: This specifies the length of the cable assembly, which is 3 meters.

Interpretation: The entire specification describes a cable assembly where:

• One end has an SMA female connector with a right-angle bulkhead mount.
• The other end has an MMCX male connector with a right-angle configuration.
• The cable used is RG316, and the total length of the cable assembly is 3 meters.

Usage: This type of cable assembly is suitable for RF applications where you need to connect equipment or devices with SMA and MMCX connectors, especially in situations where a right-angle connection is necessary. The RG316 cable provides good flexibility and performance, making it suitable for various wireless communication systems, antennas, and RF testing setups where space and maneuverability are considerations.

SMA (M) St. Connector With RG402 (L-30CM) Cable + SMA (M) St. Connector:

This setup consists of:

• SMA (M) St. Connector: A male SMA connector with a straight (St.) orientation. SMA connectors are commonly used in RF and microwave applications for their durability and performance.

• RG402 Cable (L-30CM): A 30 cm (centimeter) length of RG402 coaxial cable. RG402 is a semi-rigid coaxial cable known for its low loss and high power handling capabilities, suitable for microwave and high-frequency applications.

• SMA (M) St. Connector: Another male SMA connector with a straight (St.) orientation.

This assembly is used to establish a direct connection over a short distance of 30 cm, typically in applications requiring high-frequency signals and where low signal loss is critical. The use of RG402 cable ensures minimal signal attenuation and maintains signal integrity over the short distance.

TNC (F) St. B/H Connector With RG316 Cable ( L-1Mtr ) + SMA (M) R/A Connector:

This configuration includes:

• TNC (F) St. B/H Connector: A female TNC connector with a straight bulkhead (panel mount) configuration. TNC connectors are commonly used in RF applications requiring a threaded coupling mechanism for secure connections.

• RG316 Cable (L-1Mtr): A 1-meter length of RG316 coaxial cable. RG316 is a type of flexible coaxial cable suitable for high-frequency applications.

• SMA (M) R/A Connector: A male SMA connector with a right-angle (R/A) orientation. SMA connectors are widely used in RF and microwave applications for their durability and performance.

This assembly is typically used to establish a reliable RF connection over a distance of 1 meter, with the TNC connector providing a secure bulkhead mount and the SMA connector offering a right-angle option for space-constrained installations.
